Pump Tanks
Mokon's line of Pump Tanks reinforces our reputation as a manufacturer of quality and durable thermal fluid systems. Our engineers design each Pump Tank system to meet your specifications, and each system can be easily integrated with a central process water chiller, cooling tower or your existing water system.
Efficient Design
- Single or multiple pump configurations
- High-efficiency, close-coupled, nonoverloading centrifugal pumps for optimal flow and pressure
- Pump suction and discharge piping trim, eliminating excessive pressure drop
- Tanks provided with insulation
Maximum Safety and Reliability
- NEMA 12 rated electrical enclosure
- Sight glass with safety rods
- Fill, overflow and drain connections
- Low pressure and low level safety shutoff switches
- Reinforced steel structure deck adds rigidity and increased safety
- Anti-skid base coating
- UL 508A approved electrical panel
Low Maintenance
- Stainless steel or epoxy-coated steel tank construction
- Suction valve allows pump to be changed without draining the tank
- Multiple pump sets are equipped with suction manifolds for ease of installation
- Tank covers provided to prevent contamination and evaporation
Warranty
- 1 year on system
Central Chiller Pumping Station

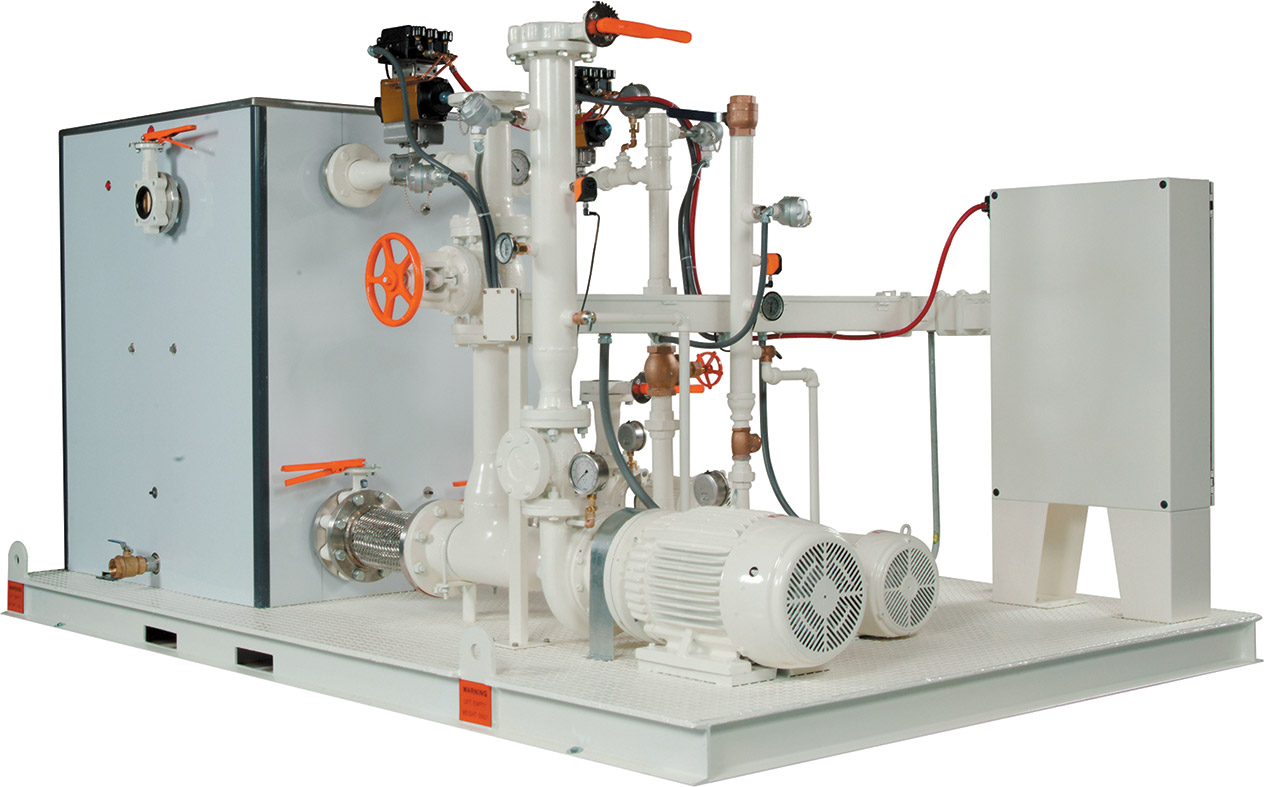

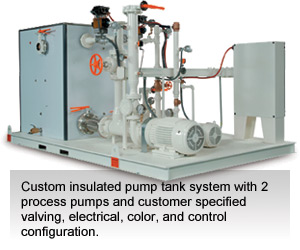

Custom insulated pump tank system with 2 process pumps and customer-specified valving, electrical, color, and control configuration.
- Microprocessor or PLC controllers
- NEMA 3, 4, 4X and 7 rated electrical enclosures and components
- Discharge check valves to prevent supply line from flow back
- Automatic fill, low water level (reservoir) indication and system shutdown, and water make-up valves
- High temperature and low flow alarms
- Full-sized standby pump acts as backup to process and recirculation pumps
- Cooling tower control available for single point interface
- NFPA 79 electrical safety standards including branch fusing
- Visual alarms
Please consult factory for more information.
| Cooling Capacity (Gallons) | Process Pump (Hp) | Recirculation Pump (Hp) | Process Pump Nominal Flow Rate (GPM) | Process Pump Nominal Pressure (PSI) | Process Connection (150# Flanged) | Tank Size (L x W X D) | Estimated Base Size (L x W) |
|---|---|---|---|---|---|---|---|
| 250 | 10 | 3 | 180 | 60 | 3" | 60" x 36" x 34" | 96" x 60" |
| 500 | 20 | 5 | 300 | 60 | 4" | 48" x 48" x 58" | 108" x 60" |
| 750 | 25 | 10 | 500 | 60 | 5" | 60" x 60" x 58" | 144" x 72" |
| 1000 | 30 | 15 | 600 | 60 | 5" | 60" x 60" x 70" | 144" x 72" |
| 1500 | 60 | 20 | 1000 | 60 | 6" | 72" x 72" x 70" | 168" x 84" |
| 2000 | 60 | 20 | 1300 | 60 | 8" | 84" x 84" x 70" | 168" x 84" |
For Pump Tank sizes greater than 2000 gallons, please contact Mokon for more information.
