Engineered Water Systems
Custom Systems Designed and Built to Customer Specifications. Made in the USA.
- Variety of voltages up to 600 Volt, 1 or 3 Phase, 50 or 60 Hertz
- Increased fluid flow, heating and cooling capacities
- Stainless steel construction, painted steel, and non-metallic
- UL, CE, CSA, EAC, RAC, NFPA, NEMA and ASME designs
Pharmaceutical Application
Custom water temperature control system for a 2,000 gallon stainless steel jacketed vessel. 500 kW heating capacity, 100 GPM and up to 40 PSI, and 7-1/2 Hp motor. Maximum operating temperature is 240°F (116°C). All stainless steel piping with ASME pressure vessel.

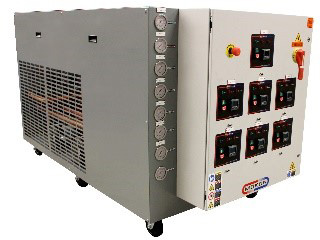

Multi-Zone Portable System
7-zone custom water temperature control system designed for a pet food manufacturer. NEMA 4 rated electrical enclosure with common supply and return for customer supplied chilled water.

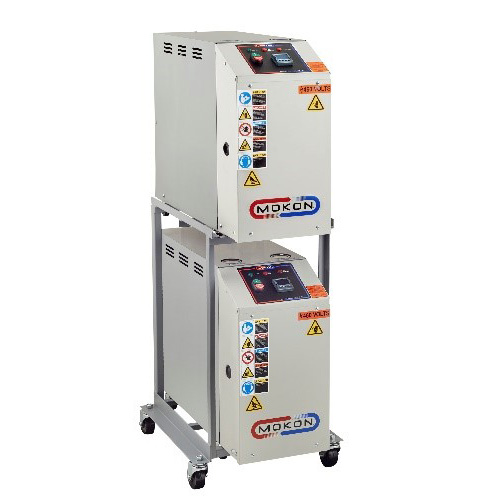

Stacking Rack
Stacking rack configuration allowing for the stacking of two systems in the same location. A “no tools” required portable design for ease of use.

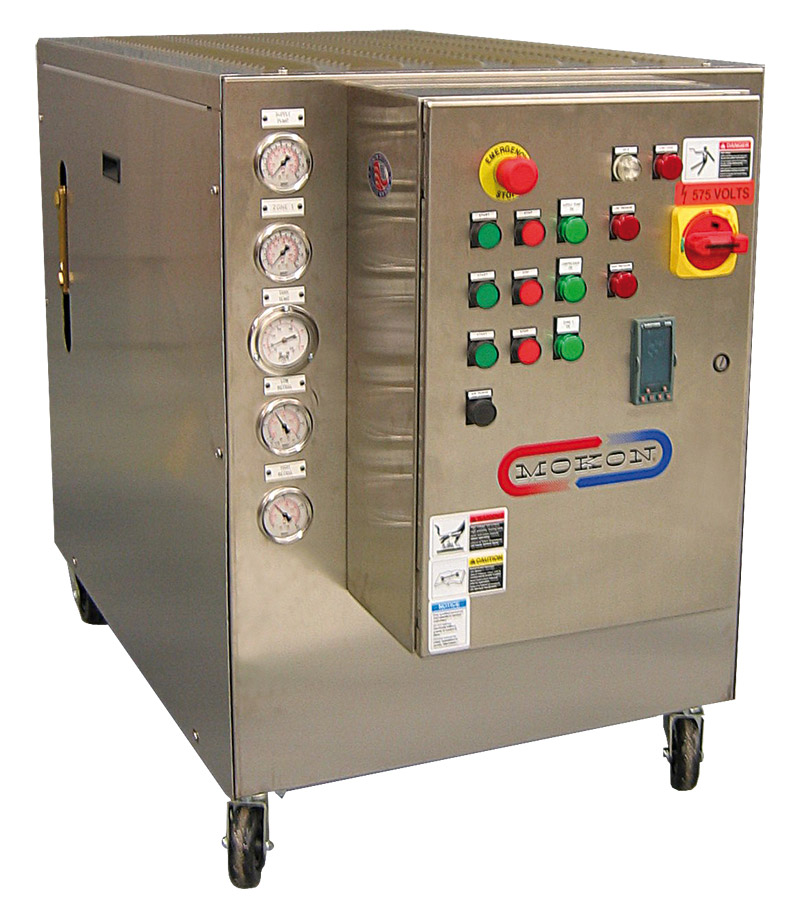

Clean-Room Application
Multi-zone water temperature control system with NEMA 4X enclosure and stainless steel cabinetry with louvered panels for wash down.

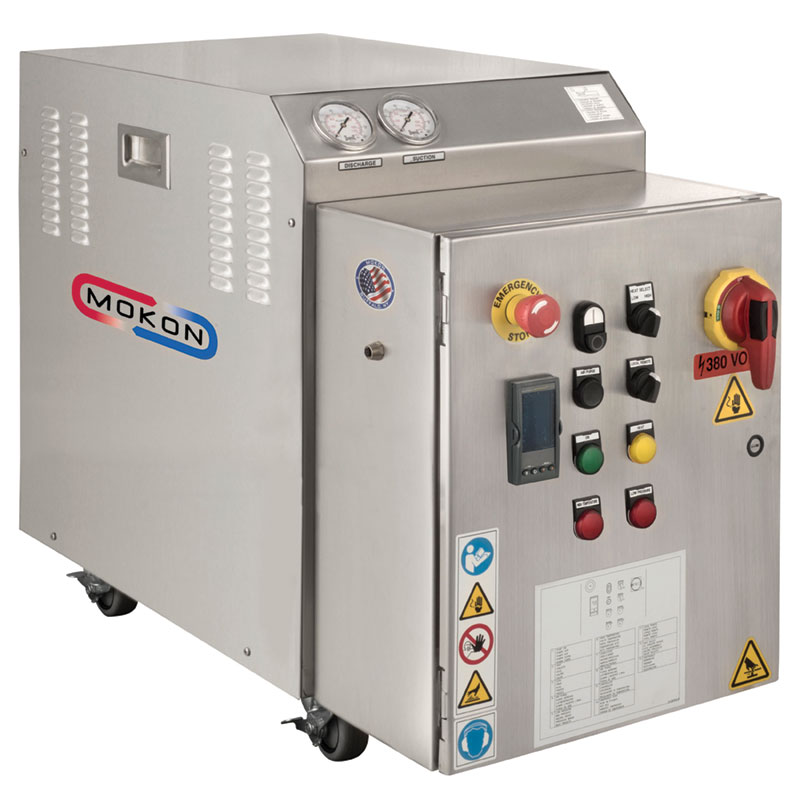

Vessel Heating Application
Mokon heating and cooling temperature control system used to heat double-walled vessel. NEMA 4X electrical enclosure and components, stainless steel cabinetry for wash down and CE rated.
Chemical Mixing Application
Mokon three zone high temperature water system in common portable cabinet. Each circuit rated 575 Volt 3 Phase 12 kW with all stainless steel wetted surfaces.
Plastic Extrusion Application
4-zone Water System - 250°F (121°C) with 3 process loops with 4 zones of control, process manifold per zone with color coated ball valves to allow customer to direct any zone to a specific roll to be heated and cooled, 24 kW heating capacity, and 15 Hp pump to deliver 200 GPM up to 65 PSI.
Dryer Application
Water/glycol heat transfer system for heating and cooling of a pressure filter dryer. 100 kW process heaters, 40 PSI, 70 GPM, ASME section VIII code stamped heater and heat exchanger, NEMA 12 electrical, and modulating cooling control.

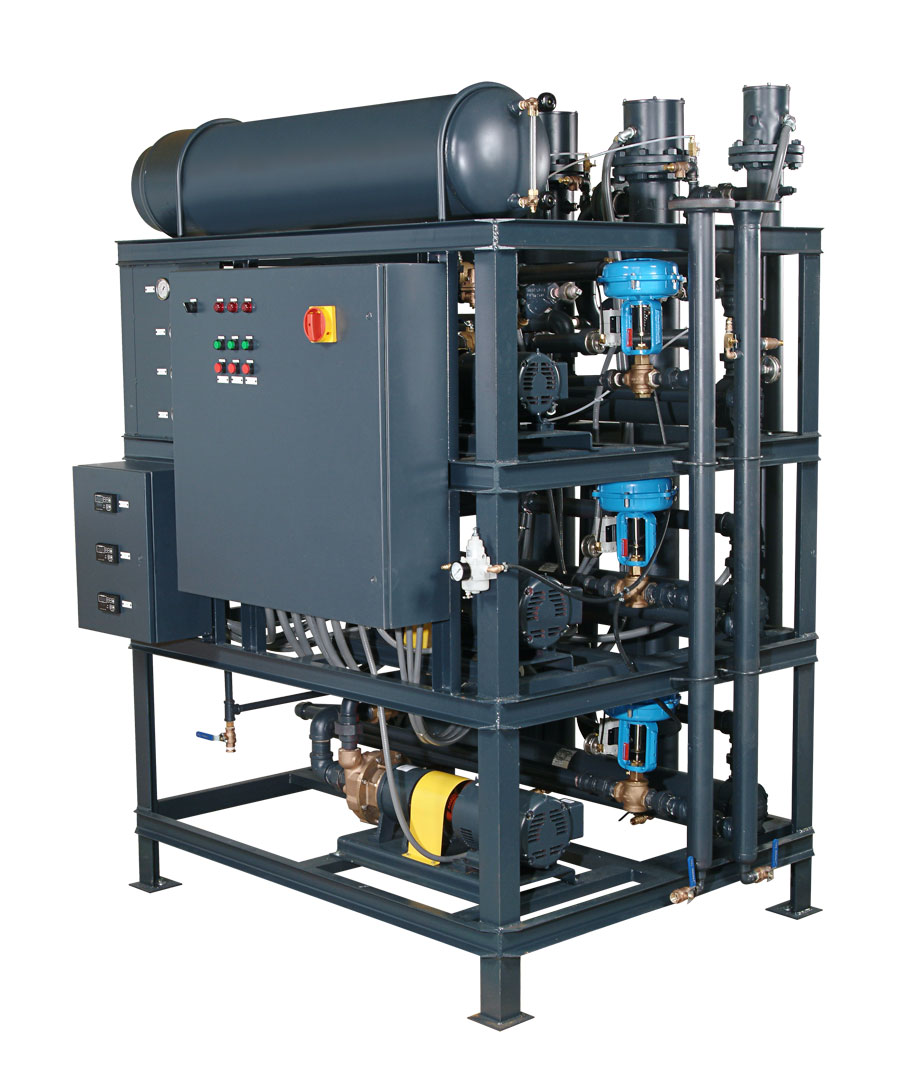

Rubber Mixing Application
3-zone water Mokon temperature control unit engineered to customer specifications with 135 kW process heaters, heat exchangers, air driven industrial cooling valves, 40 gallon tank, all welded frame mounted construction and custom paint specifications.

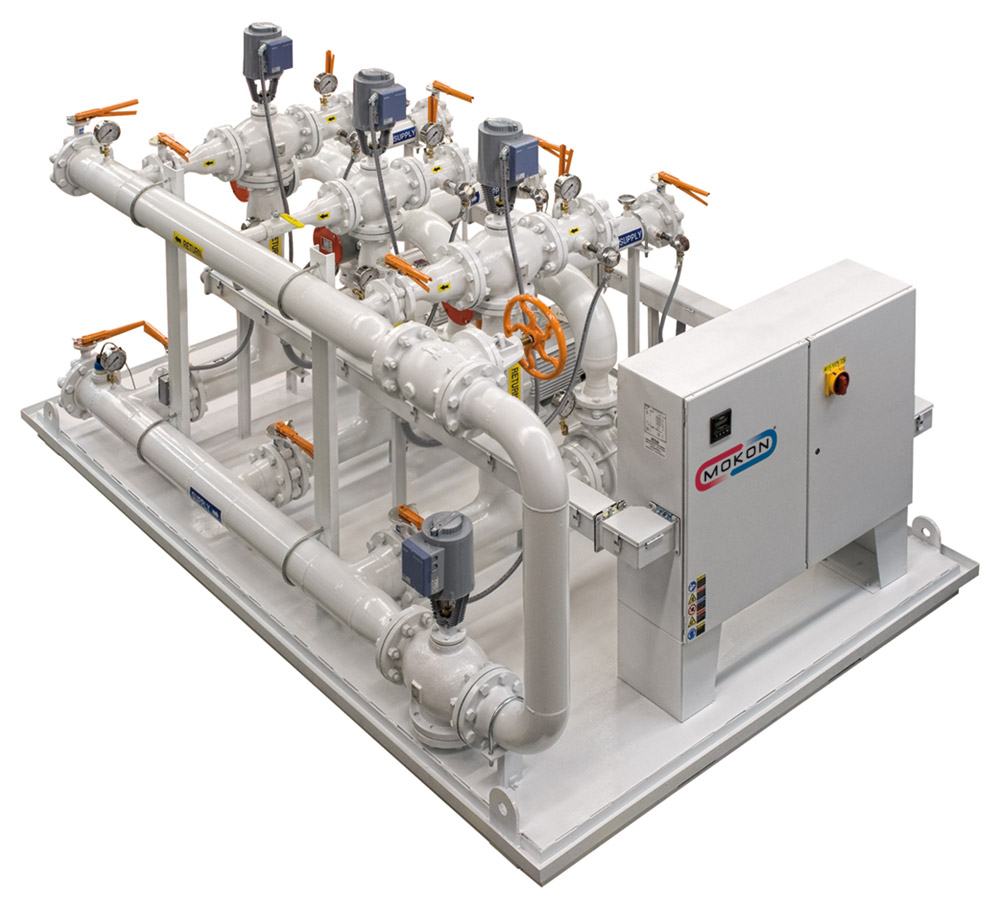

Converting Application
Skid-mounted water temperature control system for a converting line. NEMA 12 electrical components, surfaces custom painted and 3 zones of 18 kW process heaters up to 60 PSI. Two zones with 600 GPM each, third zone 400 GPM.

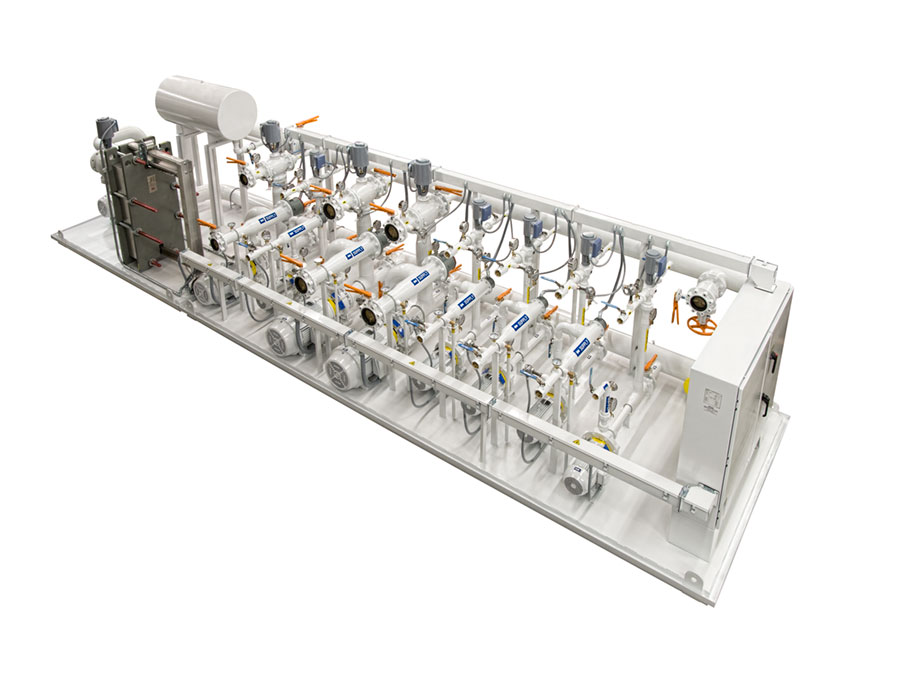

Web Film Application
Industrial cooling and process heating skid-mounted water temperature control system with heat exchanger loop, pump and expansion tank. Liquid temperature control features nine zones - 4 zones 9 kW each, 3 zones 18 kW each, and two cooling zones.
Mokon can assist with:
- Heating and cooling load calculations and sizing
- Recommending system design and features
- Sizing and selection of heat exchangers
- Customizing a control solution for your specific application
- Fluid selection
- Customer startup and training assistance
Certifications/Capabilities
- UL, CE, CSA, EAC, RAC, NFPA, NEMA and ASME designs
- NEMA rated panels — 1, 3, 4, 4X, 7, 12
- Clean room and wash down designs
- Sanitary environments
- Class I Div. I and Div. II hazardous location areas
- ISO 9001:2015 and ISO 14001:2015
Electrical and Control
- Variety of voltages up to 600 Volt, 1 or 3 Phase, 50 or 60 Hertz
- Communication options available
- Remote set point and re-transmission controllers and communication features
- Remote interface electrical enclosures
- Audible and visual alarms
- SCR and solid state relays
- Single point utility connections
Range of Capacities and Designs
- Increased fluid flow, heating and cooling capacities
- Heat exchangers and heat remover designs
- Closed and open loop circuitry
- Single and multi-zone circuits
- Portable or stationary designs
- Pressurized and non-pressurized open tanks
- Indoor or outdoor designs
Variety of Construction Materials and Components
- Stainless steel construction, painted steel, and non-metallic
- Custom paint specifications
- Sealed reservoirs
- Welded or silver brazed joints
- TEFC motors and magnetic drive seal-less pumps
- Tri-clamp and flanged connections
- Food-grade heat exchangers and acceptable cabinetry
- Non-marring casters and leveling legs
