Xtreme-Therm Heat Transfer Fluid System
Xtreme-Therm Heat Transfer Fluid System

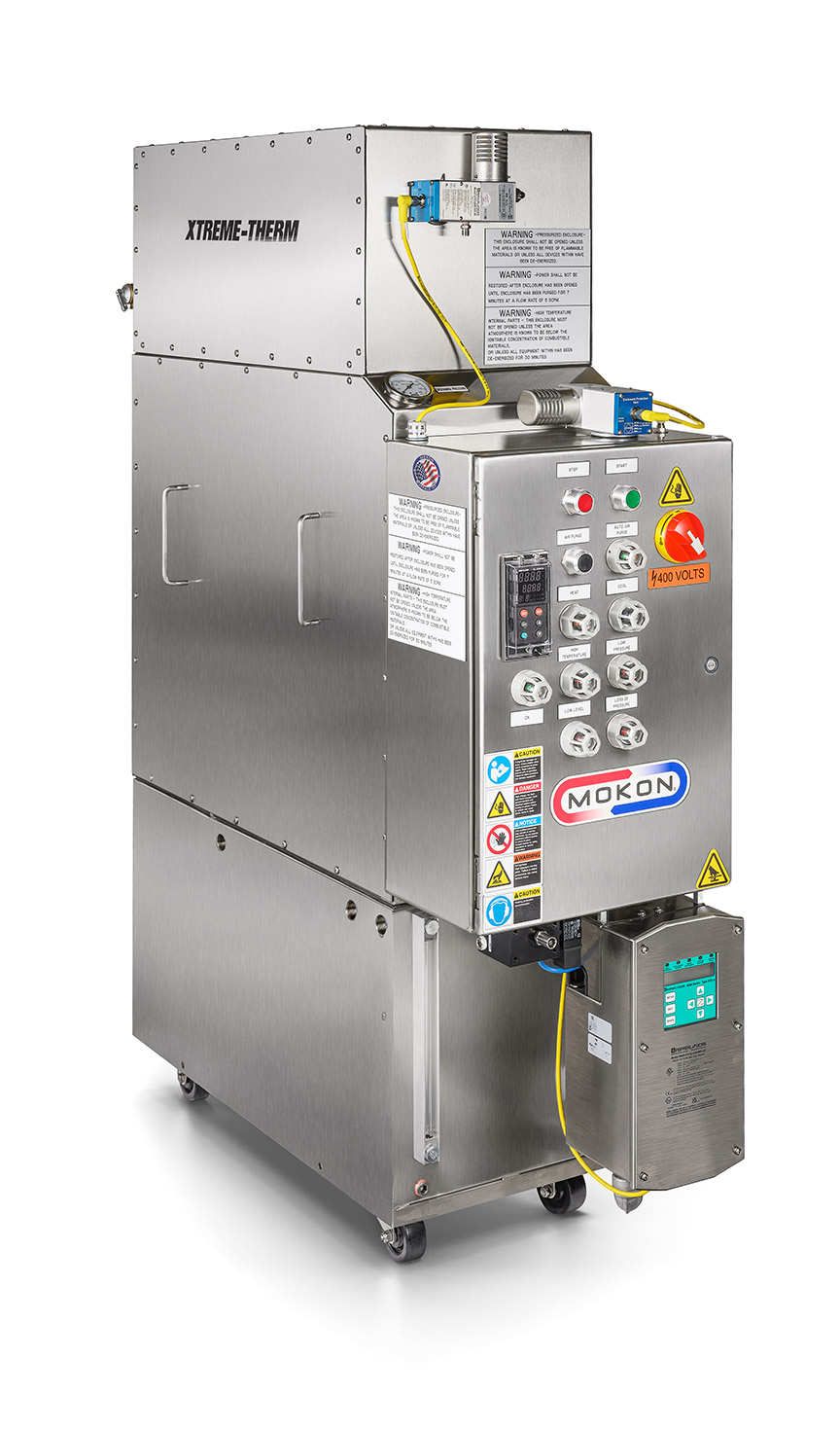

Mokon's Xtreme-Therm circulating oil temperature control system meets process heating requirements up to 600°F (315°C). Our durable, high-quality oil systems feature the latest control technology, unique cool oil reservoir philosophy and unmatched electrical/safety standards to ensure precise process fluid temperature control.
- Polyester powder coated heavy-gauge steel cabinets
- NEMA 4/12 panel with “Z” purge system suitable for Class I Division 2 locations
- cULus 508A labeled panel and certified to UL 698A
- UL 98 disconnect switch
- Microprocessor controller
- Remote set point and retransmission control and communication capabilities
- Open loop (direct injection) single circuit design
- Incoloy sheathed heaters with NEMA 4 housings
- TEFC motors
- Suction and discharge pressure gauges
- Water-cooled and remote air-cooled condensers
- Hot oil heat transfer fluid system temperatures up to 650°F (343°C)
- Heating capacity up to 500 kW
- NEMA 4/12 panel with “X” purge system suitable for Class I Division 1 locations
- NEMA 7 cast aluminum panel suitable for Class I Division 1 or 2 locations
- Closed loop (indirect cooling) and multi-zone circuits
- High-efficiency pumps up to 10 Hp
- Magnetic drive sealless pumps
- Vented and pressurized tanks
- Passivation/electro-polish surfaces
- Tool-free access panels
- Modulating cooling valve
- Stainless steel leveling legs
- Stainless steel and other custom finished cabinetry
- Audible and visual alarms
- SCR and solid-state relays
- Remote interface electrical enclosures
- Electronic controllers and sensors calibrated to ISO 17025 standards
- Variety of communication capabilities
- Remote start/stop
Please consult factory for more information.
- Chemical processing
- Corrosive/harsh environments
- Explosion-proof areas
- Flammable liquids, gases and vapors
- Heat exchangers
- Heat tracing/jacketed pipe
- Jacketed vessels
- Metal die casting
- Mixers and blenders
- OEM equipment and systems
- Oil and gas refineries
- Ovens and furnaces
- Plating, electroplating and anodizing
- Vaporizers
- Vessels and reactors
| Pump | Flow Rate and Pressure | Heating Capacity (kW) | Process | Supply/Drain | Approximate Dimensions (L x W x H) |
|---|---|---|---|---|---|
| 3 Hp | 40 GPM to 51 PSI | 12 | 1½″ | 1″ | 45″ x 30″ x 60″ |
| 3 Hp | 40 GPM to 51 PSI | 24 | 1½″ | 1″ | 45″ x 30″ x 60″ |
| 3 Hp | 40 GPM to 51 PSI | 36 | 1½″ | 1″ | 45″ x 30″ x 60″ |
| 3 Hp | 40 GPM to 51 PSI | 48 | 1½″ | 1″ | 45″ x 30″ x 62″ |
| 3 Hp | 40 GPM to 51 PSI | 60 | 1½″ | 1″ | 45″ x 30″ x 62″ |
