ClearFlo PLUS
The ClearFlo PLUS Heat Transfer Fluid Filtration and Water Removal System easily connects to your heat transfer fluid system's cool oil reservoir to remove contaminants, water, and in some cases, reduces the acidity of the fluid for longer fluid life and trouble-free system operation. Fluid contamination, and especially the presence of water in the fluid, increases your system's energy consumption, and is a source of nuisance shutdowns. Mokon's ClearFlo PLUS system significantly reduces fluid contamination and water build-up in your heat transfer system, reducing downtime and maintenance costs.
Typical Results
- Reduces downtime and maintenance labor
- Reduces “nuisance” shutdowns caused by water vapor pockets
- Improves efficiency of your heat transfer system
- Reduces wear and damage to rotating parts
- Extends the life of pumps up to three times longer
- Reduces frequency of fluid changes
- Removes particles as small as 1/10 microns
Warranty
- 1 year on system
If you consider downtime, maintenance labor and part replacement costs, the ClearFlo System should provide a full return on investment within six months to one year of installation.
| Model | Description | Pump (Hp) | Flow Rate (GPM) | Voltage | Total Amps | Reservoir Connection | Dimensions L x W x H (approx.) | Shipping Weight (approx.) |
|---|---|---|---|---|---|---|---|---|

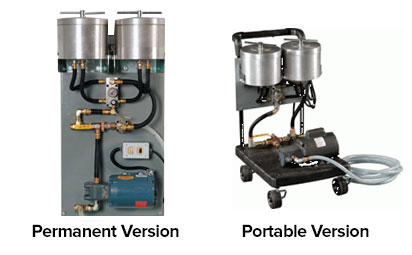

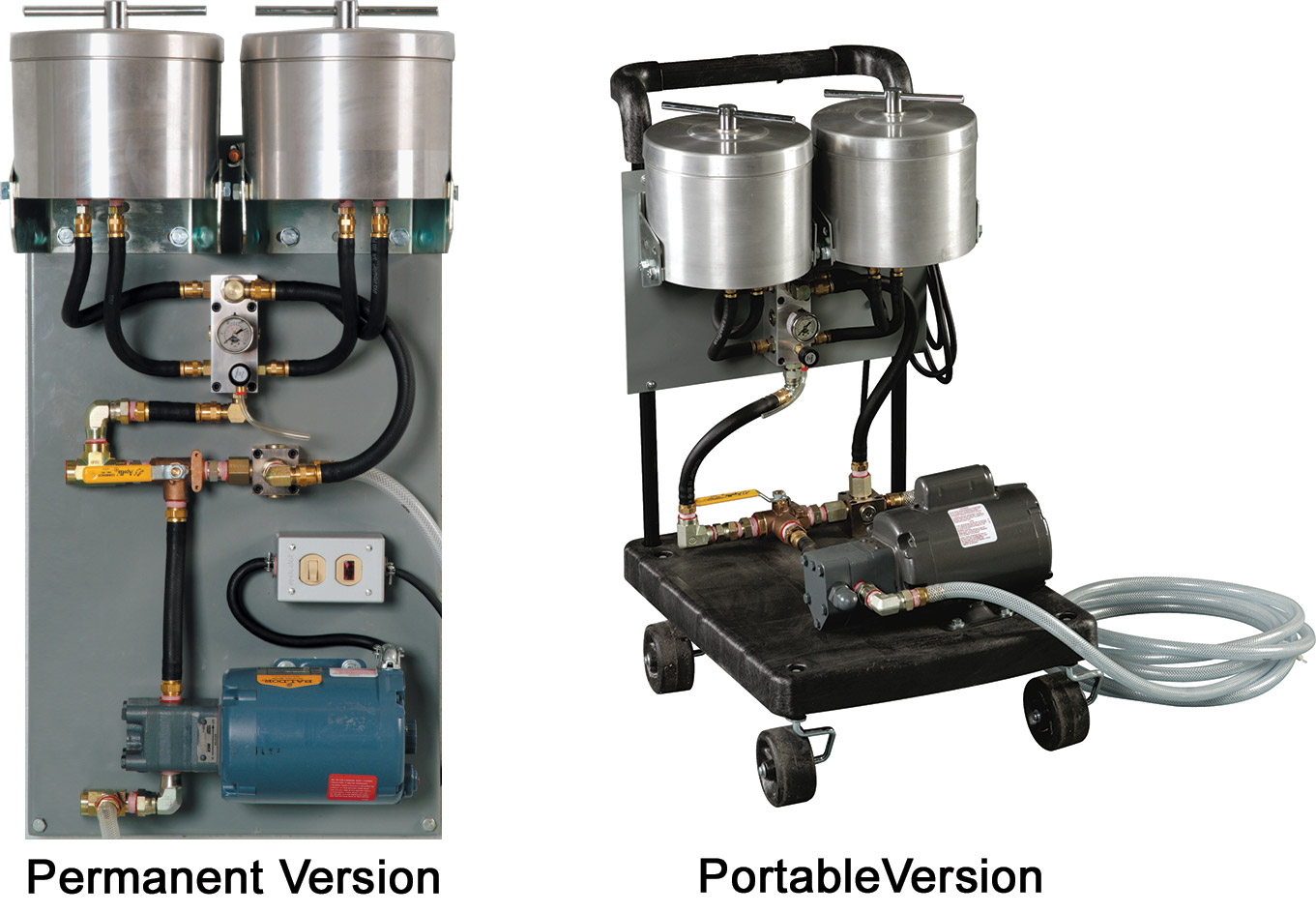

| CFP50000 | Wall Mount System | 1/3 | 1.4 | 110V/1PH/60HZ | 7.2 | 1/2″ | 18″ x 30″ x 18″ | 175 |
| CFP60000 | Portable System | 1/3 | 1.4 | 110V/1PH/60HZ | 7.2 | 1/2″ | 28″ x 20″ x 35″ | 175 |
