Xtreme-Therm for Severe-Duty Industrial Applications
Mokon's Xtreme-Therm® line features high-performing equipment designed for severe-duty environments in industrial manufacturing applications. Our portable chillers, combination heating and chilling systems, and circulating water and oil temperature control systems are built with robust polyester powder coated steel cabinetry. These high-quality products provide long-lasting operation in harsh industrial environments, assuring you a trusted, reliable temperature control solution. Mokon can customize any system to fit your specific requirements.

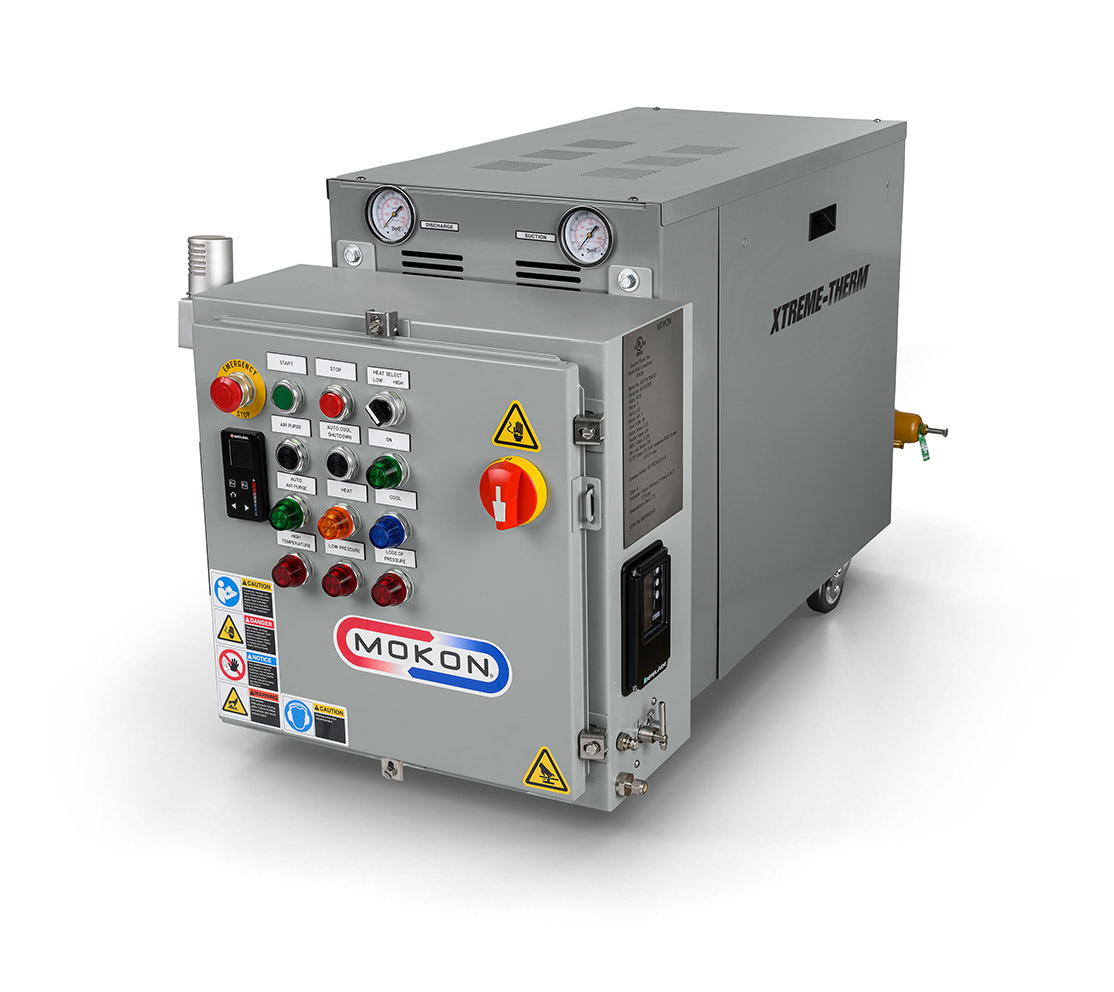

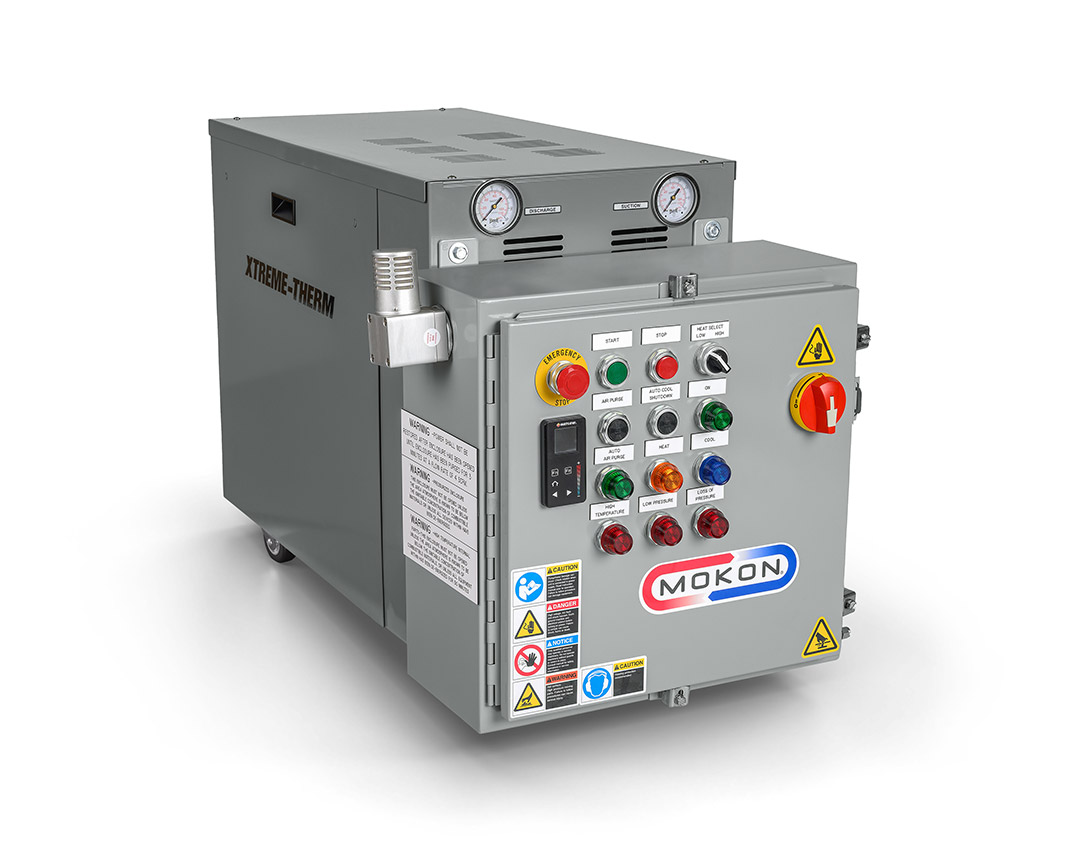

Xtreme-Therm Circulating Water Temperature Control System
Mokon's Xtreme-Therm circulating water temperature control system features advanced heating technology with temperatures up to 250°F (121°C). The high-performance design offers higher heat transfer rates with unmatched control efficiency and accuracy. Built with non-ferrous and stainless steel materials, the Xtreme-Therm water system manages excellent corrosion resistance and leak-free operation in a compact, easy to move unit.
- Polyester powder coated heavy-gauge steel cabinets
- NEMA 4/12 panel with “Z” purge system suitable for Class I Division 2 locations
- cULus 508A labeled panel and certified to UL 698A
- UL 98 disconnect switch
- Microprocessor controller
- Remote set point and retransmission control and communication capabilities
- Open loop (direct injection) single circuit design
- Incoloy sheathed heaters with NEMA 4 housings
- TEFC motors
- Suction and discharge pressure gauges
- Water-cooled and remote air-cooled condensers
- Temperatures up to 300°F (149°C)
- Heating capacity up to 500 kW
- NEMA 4/12 panel with “X” purge system suitable for Class I Division 1 locations
- NEMA 7 cast aluminum panel suitable for Class I Division 1 or 2 locations
- Closed loop (indirect cooling) and multi-zone circuits
- High-efficiency pumps up to 10 Hp
- Magnetic drive sealless pumps
- Vented and pressurized tanks
- Passivation/electro-polish surfaces
- Tool-free access panels
- Modulating cooling valve
- Stainless steel leveling legs
- Stainless steel and other custom finished cabinetry
- Audible and visual alarms
- SCR and solid-state relays
- Remote interface electrical enclosures
- Electronic controllers and sensors calibrated to ISO 17025 standards
- Variety of communication capabilities
- Remote start/stop
Please consult factory for more information.
- Chemical processing
- Corrosive/harsh environments
- Explosion-proof areas
- Flammable liquids, gases and vapors
- Heat exchangers
- Heat tracing/jacketed pipe
- Jacketed vessels
- Metal die casting
- Mixers and blenders
- OEM equipment and systems
- Oil and gas refineries
- Ovens and furnaces
- Plating, electroplating and anodizing
- Vaporizers
- Vessels and reactors
| Pump | Flow Rate and Pressure | Heating Capacity (kW) | Process | Supply/Drain | Approximate Dimensions (L x W x H) | ||
|---|---|---|---|---|---|---|---|
| 1 Hp | 25 GPM @ 25 PSI | 9 | 18 | 24 | 1″ | 1″ | 42″ x 20″ x 37″ |
| 1½ Hp | 40 GPM @ 32 PSI | 9 | 18 | 24 | 1½″ | 1″ | 42″ x 20″ x 37″ |
| 3 Hp | 60 GPM @ 34 PSI | 9 | 18 | 24 | 1½″ | 1″ | 42″ x 20″ x 37″ |
| 5 Hp | 80 GPM @ 38 PSI | 9 | 18 | 24 | 1½″ | 1″ | 42″ x 20″ x 37″ |
